Place of Origin: | Shenzhen,China |
Brand Name: | AscentOptics/Neuter, OEM |
Certification: | CE/FCC/RoHS/TUV/UL |
Model Number: | AQSFP-40G-ER4 |
Minimum Order Quantity: | 1PCS |
---|---|
Packaging Details: | 10 or 20PCS /Plastic tray, 1PC/Gift box |
Delivery Time: | Within 1-3 working days after PO confirmed |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 50,000pcs/Month |
Highlight: | cisco sfp transceivers,fiber optic transceiver |
---|

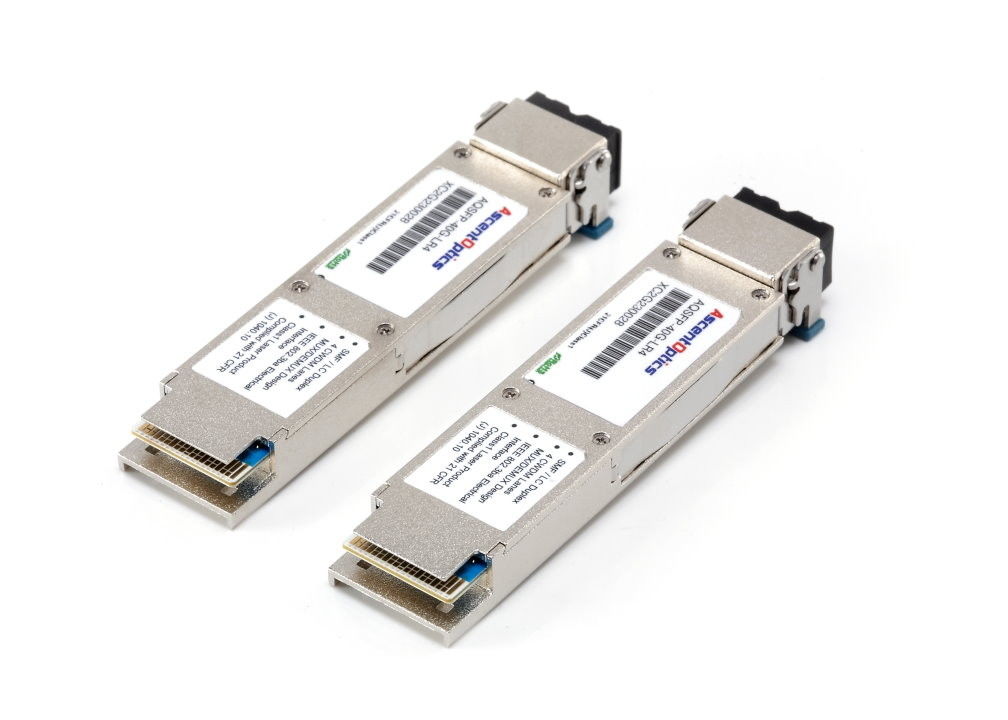

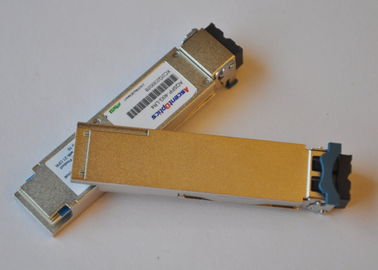

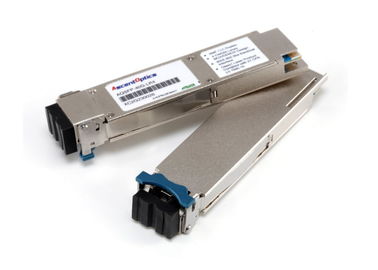

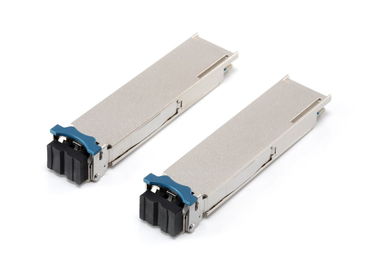

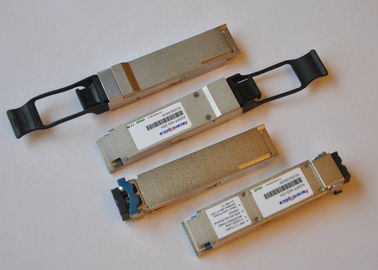

40G CFP ER4 40KM single-mode 40G Ethernet/ Infiniband QDR, DDR and SDR/Data Center
Specification:
P/N | AQSFP-40G-ER4 |
Datarate | 40G/ps |
Distance | 40KM |
Wavelenth | 4 CWDM Lane 1270 1290 1310 1330 |
Media | SMF |
DDM/DOM | YES |
Connector | LC |
Application | 40G Ethernet/ 40G Infiniband |
Operating Temperature | 0℃~ +70℃ |
Voltage Supply | 3.3V |
Certification | CE/FCC/RoHS/TUV/UL |
Brand | AscentOptics/Neuter, OEM |
Description:
40G CFP ER4 40KM single-mode 40G Ethernet/ Infiniband QDR, DDR and SDR/Data Center
The Quad Small Form-factor Pluggable ( QSFP or QSFP+) is a compact, hot-pluggable transceiver used for data communications applications. It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic cable. It is a industry format jointly developed and supported by many network component vendors. QSFP+ transceivers are designed to support Serial Attached SCSI,40G Ethernet, 20G/40G Infiniband, and other communications standards.The QSFP Transceiver include 40GBASE-SR4 and 40GBASE-LR4 for different applications.
The AscentOptics 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
Contact Person: Mr. Chock Lu
Tel: +86-755-26473461 ext 27
