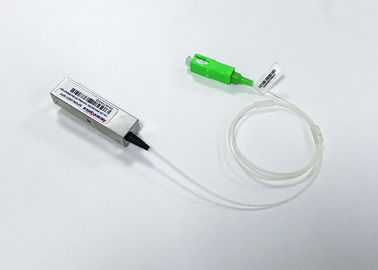

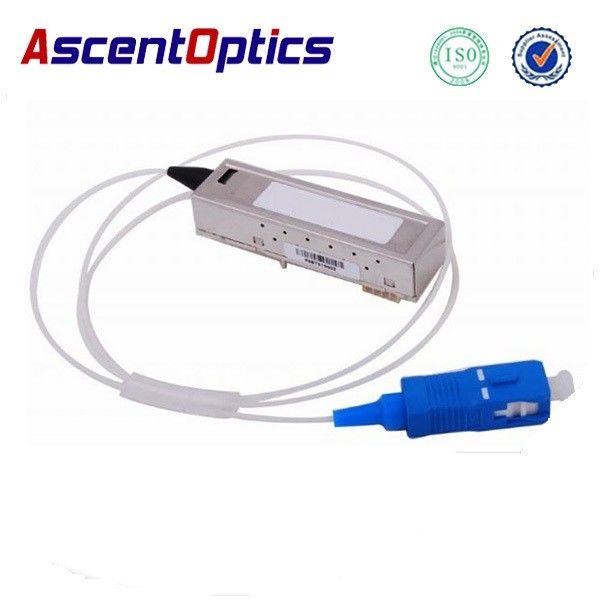

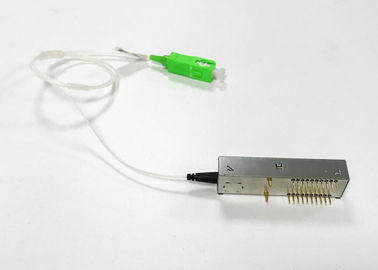

SC GPON Transceiver , EPON ONU SFF bidirectional fiber optic transceiver Module

SC GPON Transceiver , EPON ONU SFF bidirectional fiber optic transceiver Module

Specification:

GPON ONU Optical Transceiver SFF Module TX 1.25G/RX 2.5G 20km

Description:

Description:

Description:

1.The EPON ONU Transceiver module is designed for Gigabit Ethernet Passive Optical Network(EPON)20km transmission. The module incorporates 1310nm burst-mode transmitter and 1490nm continuous-mode receiver.

2.The transmitter section uses a 1310nm FP laser and an integrated BM laser driver which is designed to perform very small burst enable/disable delay time. The laser driver also includes digital APC and temperature compensation circuit, which are used for keeping the launch optical power and extinction ratio constant over temperature and aging.

3.The receiver section uses an integrated 1490nm InGaAs PIN photodiode and preamplifier mounted together.It has the function that indicates receiver signal-detected status (active high).An integrated WDM coupler can separate 1490nm input light and 1310nm output light.

4.The metallic package guarantees excellent EMI and EMC characteristics, which totally comply with international relevant standards.

Applications

Optical transceiver for Gigabit Ethernet Passive Optical Networks (EPON)ONU side.

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
