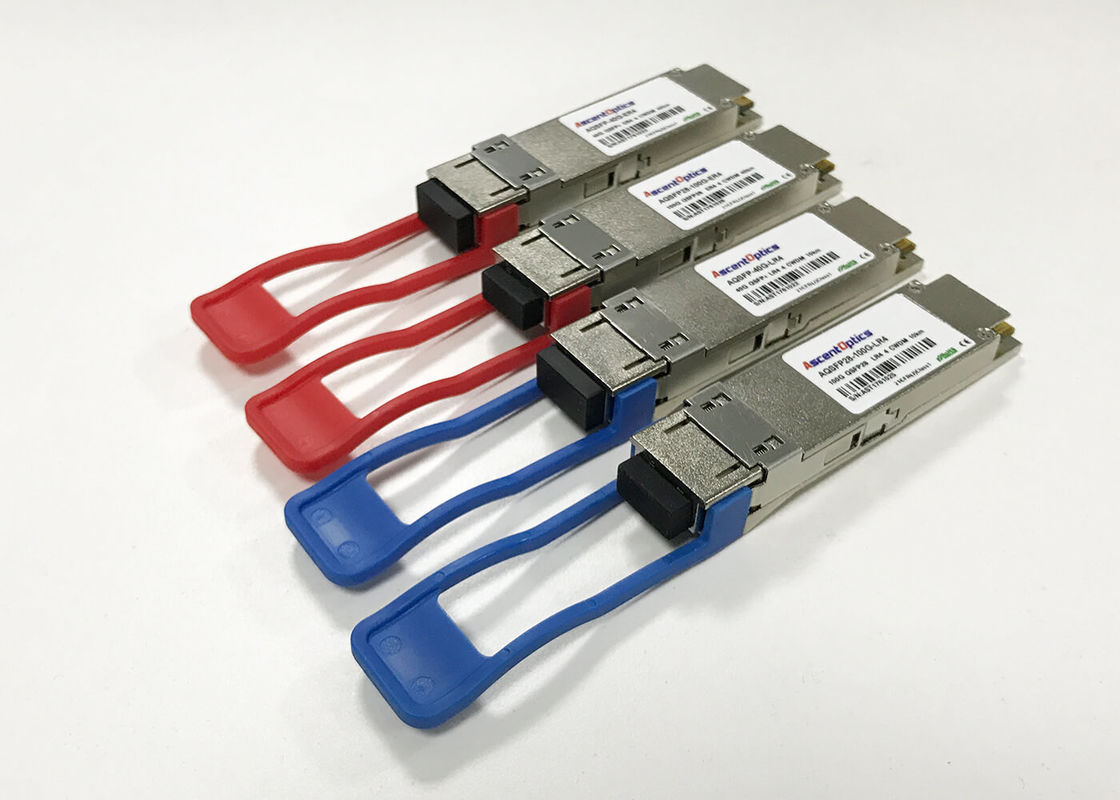

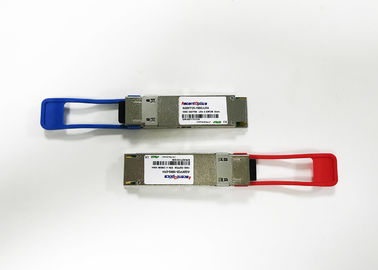

DDM / DOM 100G QSFP28 Transceiver LR4 1310nm 10km SM Optical modules

Description:

(1)This product is a 100Gb/s transceiver module designed for optical communication applications compliant to the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
(2)The central wavelengths of the 4 LAN WDM channels are 850, 1295.56, 1300.05, 1304.58 and 1309.14nm as members of the LAN WDM wavelength grid defined in IEEE 802. 3ba.The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Applications

• 100G Ethernet
• Infiniband interconnects
• 100G Telecom connections
• Data Centers

Cisco QSFP-100G Portfolio

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
