Place of Origin: | Shenzhen,China |
Brand Name: | Neuter, OEM |
Certification: | CE/FCC/RoHS/TUV/UL |
Model Number: | AQSFP28-100G-SR4 |
Minimum Order Quantity: | 1PCS |
---|---|
Packaging Details: | 10PCS /Plastic tray, 1PC/Gift box |
Delivery Time: | Within 1-3 working days after PO confirmed |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 50,000pcs/Month |
Product Name: | 100G QSFP28 Optical Transceiver | Datarate: | 100G/ps |
---|---|---|---|
Distance: | 100M | Wavelenth: | 850nm |
Connector: | MTP/MPO | DDM/DOM: | YES |
Highlight: | fiber optic transceiver,qsfp transceiver module |

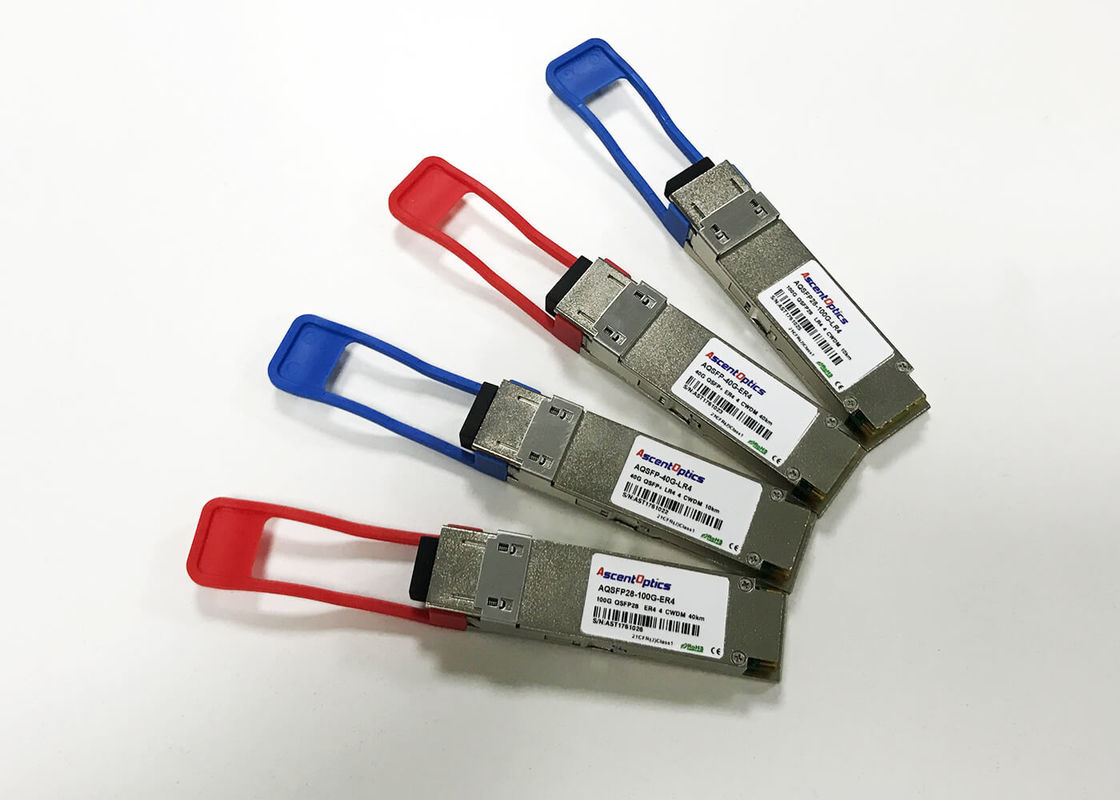

100M 100G/ps QSFP28 Optical Transceiver For 100G Ethernet AQSFP28-100G-SR4
Specification:
P/N |
AQSFP28-100G-SR4 |
Datarate |
100G/ps |
Distance |
100M |
Wavelenth |
850nm |
Media |
MMF |
DDM/DOM |
YES |
Connector |
MTP/MPO |
Application |
100G Ethernet/ 40G Infiniband |
Operating Temperature |
0℃~ +70℃ |
Voltage Supply |
3.3V |
Certification |
CE/FCC/RoHS/TUV/UL |
Brand |
Neuter, OEM |
Description:
100GBASE-SR4 QSFP28 Module for MMF
.
AscentOptics ASFP28-100G-SR4 is a four-Channel, pluggable, parallel, fiber-optic QSFP+ SR4 for 100 or 40 Gigabit Ethernet, Infiniband FDR/EDR and 32GFC applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 112.2 Gbps bandwidth. Each lane can operate at 28.05Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates AscentOptics Page 2 of 12 Feb / 2016 Preliminary V1.0 proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Applications
AscentOptics 100G QSFP28
P/N | Data Rate | Distance | LD | PD | DDMI | Power Consumption |
AQSFP28-100G-SR4 | 100GE | 100m(OM4) | VCSEL | PIN | YES | <3.5w |
AQSFP28-100G-LR4 | 100GE | 100m(OM4) | VCSEL | PIN | YES | <2.5w |
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
Contact Person: Mr. Chock Lu
Tel: +86-755-26473461 ext 27
